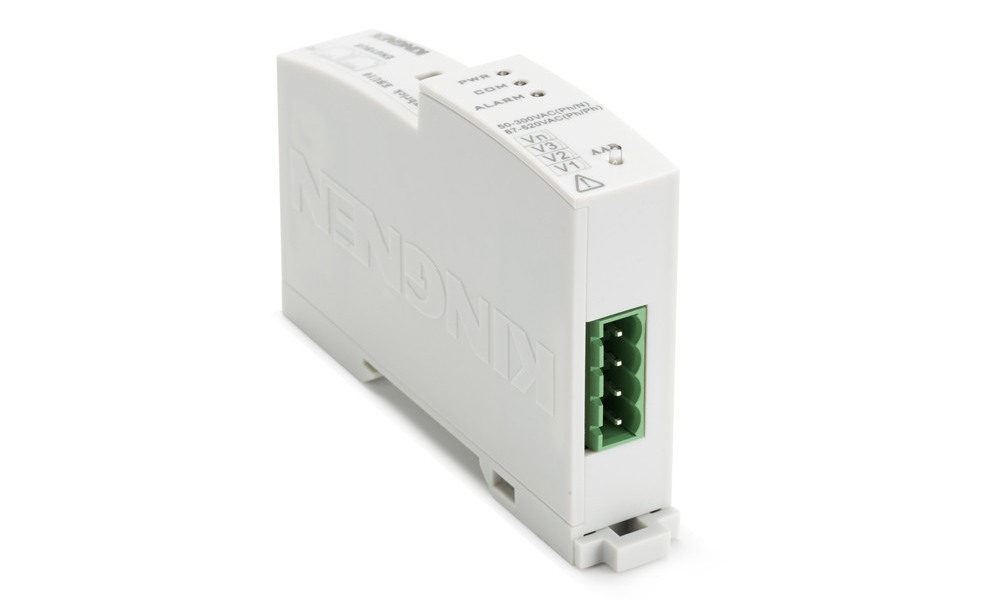

Engybrick U module can measure voltage parameters of the whole system.
EngyBus RJ45 cable can be used for power transmission and measurement voltage parameters for all devices.
Applicable to a single voltage measurement point of the whole system.
Connection Type: three phase three wire,three phase four wire, three independent voltage channels
A complete and dedicated solution:
--Suitable for metering
--Suitable for voltage monitoring
--Suitable for voltage quality analysis
Comply with IEC61557-12 standards,to ensure the quality and accuracy of the system
2% to 120% rated current full range measurement is 0.2 class.(matching with closed type current transformer).
Optional extensive module DI/DO
Model | EBU10 |
Power Supply | EngyBus powered |
Voltage Range | 50-300VAC(Ph/N) 87-520VAC(Ph/Ph) |
Voltage Accuracy | 0.2 class |
Frequency Range | 45-65Hz |
Frequency Accuracy | 0.2 class |
Dimension | 64.2mm*89.3mm*18mm |
Protection Grade | IP40 |
Storage Temperature | -25℃~+70℃ |
Operating Temperature | -10℃~+70℃ |
Relative humidity | 10%~95%RH |
