Engybrick Distributed Intelligent Power Monitoring


Advantage of Engybrick System

  • Engybrick, a system of Distributed Intelligent Power Monitoring Modules, is certain to bring a revolutionary change regarding to the on-site installation and system cost control.

  • Being different from the traditional all-in-one integrated multifunctional power monitors, Engybrick is designed as a number of individual modules,namely,voltage module,current module,communications module,power supply module and display module.

  • With the design for DIN-rail mounting, the system can be configured flexibly. The system is provided with EngyBus, a high-speed data bus developed by KINGNEN, and the RJ45 connection,which can be used by all the modules in common,making the system installation an easy job and thus huge amount of labor,time and money is saved.

  • So Engybrick is a good substitute for the traditional power monitoring meters,suitable for the applications of Power Management solution,MV/LV switchgear.It can also be used in the side unit of a cabinet row or as the substitute for intelligent PDU.

  • Special Technology

    1. Real time data base.

    2. EngyBus, the internal high-speed Bus.

  • Online upgrade available.

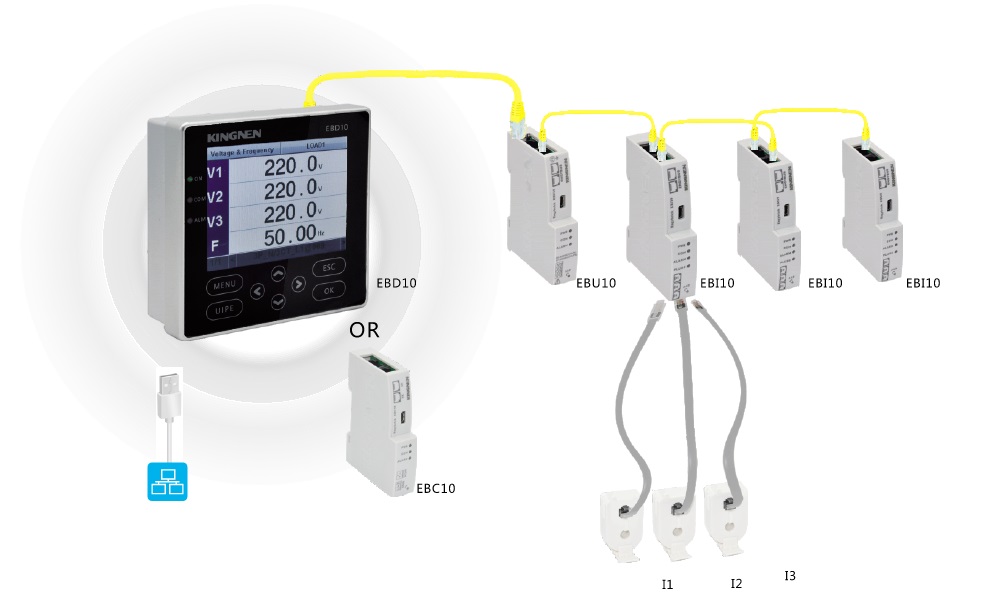

Basic System Configuration

■1 PCS Display module     ■1 PCS Voltage measuring module    ■Multi current measurement modules   ■Current Transformer




Multiple Loop Circuit Connection

Current input values of multiple loop circuits can be measured by one module of Engybrick.

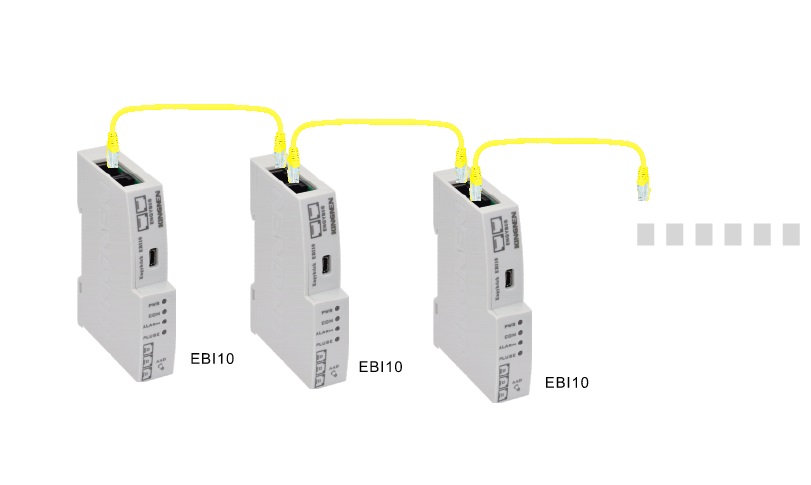

  • Easy Installation

            modules adopt din-rail mounting design, using RJ45 (EngyBus) cable for wire connection among the modules to realize the mutual data communication and power supply.

  • Convenience of Installation and maintenance

    CT adopts external connection mode (split core or non-split core at options); Engybrick can realize no off-line installation by using the RJ12 cable between the current transformer and current module.

  • Cost Saving

           With Din-rail mounting design plus with RJ45 wire connection among the modules, Engybrick can save more than 75% of the installation time than the traditional type does ; different loop circuits share the common-used voltage module, display modules, communication modules and power supply modules , so installation costs can be saved a lot; it also saves installation space a lot because of the compact design among the modules.

2016-5-3 8-57-09.png
